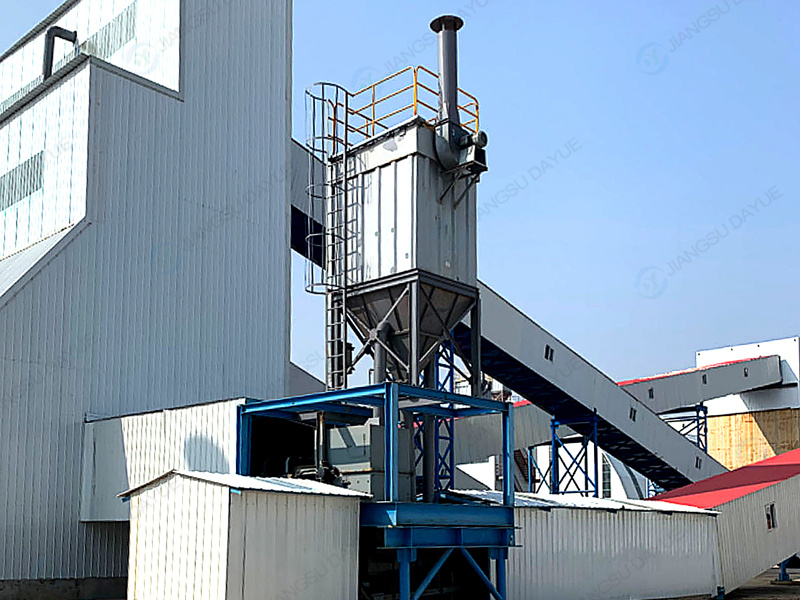

DMC Series Single Pulse Jet Bag Filter Dust Collector

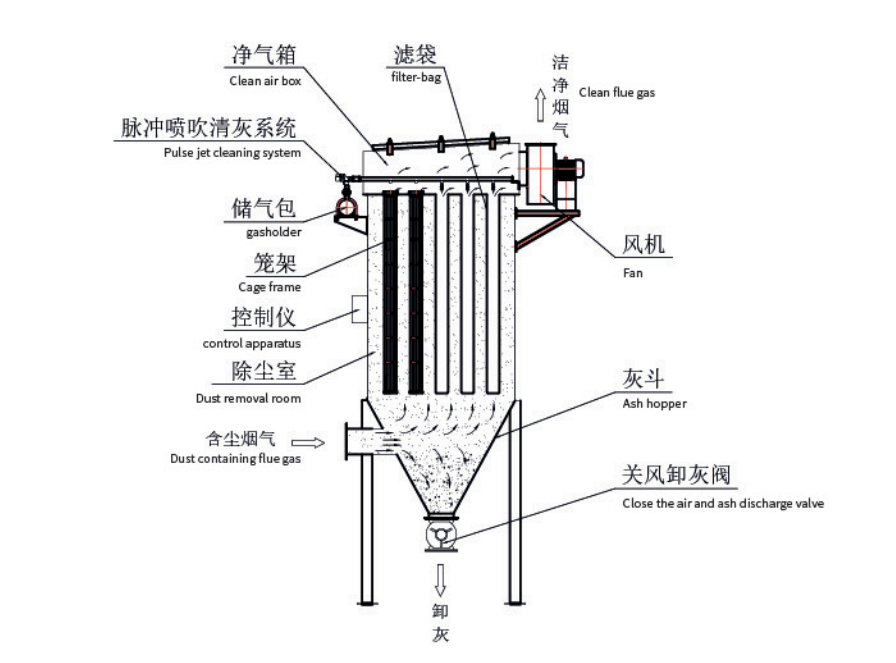

DMC pulse jet collector is a compacted type collector,which is enhanced designed adopting local and international standard practices The features of this series dust collector is the de-dust concept is pulse blow with efficient and effective dust removal rate,high fan operating volume,longer service life of the filter bag,minimum maintenance work, and stable operation .It is widely used for purifying non-fibrous industrial dust in building materials,metallurgy,electricity,chemical industry and other industries applications. It has type A with dust collector hopper and type B without dust collector hopper.
| Model/Technical Parameter | DMC32 | DMC48 | DMC64 | DMC80 | DMC96 | DMC112 | |
| Air volume（m3/h） | 1500-2100 | 2100-3200 | 2900-4300 | 2900-4300 | 5200-7000 | 6000-9000 | |
| Total filter area（m2） | 24 | 36 | 48 | 60 | 72 | 84 | |
| Total quantity of filter bag（pcs） | 32 | 48 | 64 | 80 | 96 | 112 | |
| Pulse Valve | Quantity（Pcs） | 4 | 6 | 8 | 10 | 12 | 14 |
| Size（inch） | 1″Right angle | ||||||
| Specification of filter bag（D×Lmm） | Φ120×2000 | ||||||
| Filtration material（m/min） | 1.2-2.0（Design according to requirement） | ||||||
| Negative pressure（Pa） | ≤5000 | ||||||
| Resistance （Pa） | 500-1200 | ||||||
| Inlet dust consumption（g/Nm3） | ＜200 | ||||||
| Blowing pressure （MPa） | 0.3-0.5 | ||||||
| Compressed air consumption（Nm3/min） | 0.1 | 0.14 | 0.2 | 0.24 | 0.29 | 0.34 | |
| Power（KW） | 1.5 | 3 | 3 | 5.5 | 5.5 | 7.5 | |
| Weight（Kg） | A | 1350 | 1620 | 1850 | 2360 | 2800 | 3200 |
| B | 1220 | 1470 | 1670 | 2150 | 2540 | 2880 | |
