Jiangsu Dayue Technology Co.,Ltd.
HX1550Track Screening Station
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

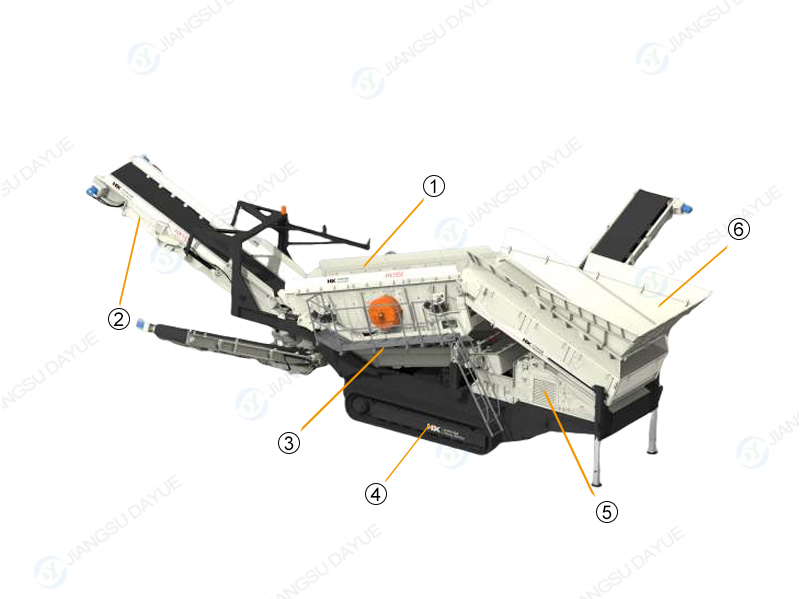

Structural Drawing
| HX1550 | ||
| ①Vibrating screen box | ②Main belt conveyor | ③Ladder&aisle |
| Screen box size: 5000X1500 Number of layers:2 |
bandwidth: B800mm, power:2×5.5kw |
Easy to maintain equipment |
| ④ Tracks | ⑤Power unit | ⑥ Plate chain feeder |
| Heavy-duty structure, suitable for various environments |
Can transport large and heavy materials | |
Technical Parameters
| Model | Scope of application | Processing capacity (Bulk density1.6t/m) |
Hopper capacity | Screen box layers | |||
| HX1550Heavy Screening | For heavy screening, rock blasting orCrushed rock, river gravel, construction andDemolition waste, recycling applications. |
500t/h | 7m³ | 2layer | |||
| Maximum feed size | External power supply | achievementRate | Heavyquantity | Shipping sizewxya | Price | ||
| 400mm | 52KW (Without engine power) |
75KW | 32000Kg | 9.72mx 2.62mx3.2m | 130Ten thousand | ||
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
