Jiangsu Dayue Technology Co.,Ltd.
HX1560 Track Screening Station
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

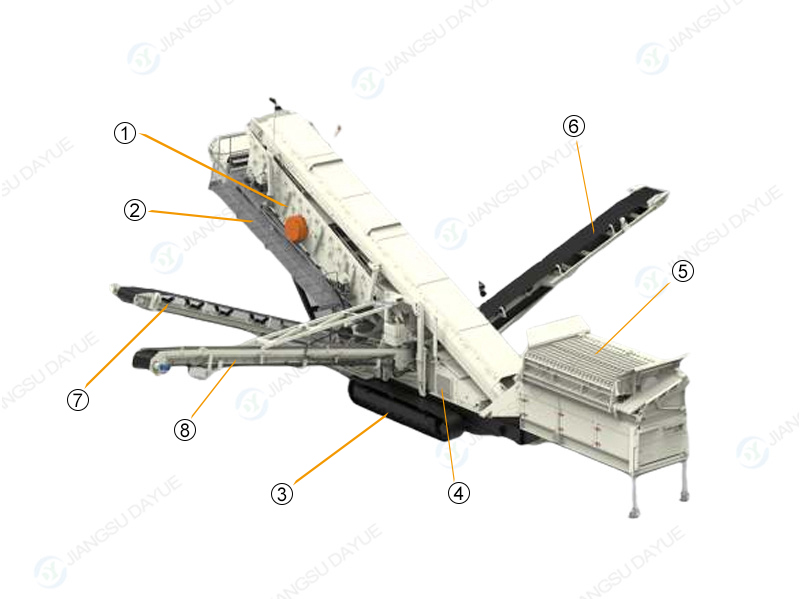

Structural Drawing
| HX1560 | ||
| ①Vibrating screen box | ②ladder&aisle | ③ Tracks |
| Screen box size: 6000X1500 Number of layers:3 |
Easy to maintain equipment | Heavy-duty structure, suitable for various environments |
| ④Power unit | ⑤Feeding device | ⑥⑦⑧Outlet belt |
| Equipped with reversible grilleHopper capacity:7m | Side folding conveyor | |
Technical Parameters
| Model | Scope of application | Processing capacity (Stacking density1.6t/m³) |
Hopper capacity | Screen box layers | ||||
| HX1560Inclined screening | 1.widely used in screening operations in various crushing and screening processes; 2. screening of materials in quarries and mining sites, and screening of aggregates in crushed asphalt and concrete mixing plants; 3.solid waste resource utilization, such as house demolition, recycling of road concrete material screening; 4.material screening in other industries. |
350t/h | 5m²(8 m³) | 3layer | ||||
| Maximum feed size | External power supply | power | weight | Shipping sizewxya | price | |||
| 55mm | 57KW(Without engine power) | 97KW | 36000Kg | 19.3mx3.0mx 3.5m | 110Ten thousand | |||
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
