Jiangsu Dayue Technology Co.,Ltd.
Crawler cone crushing station
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout

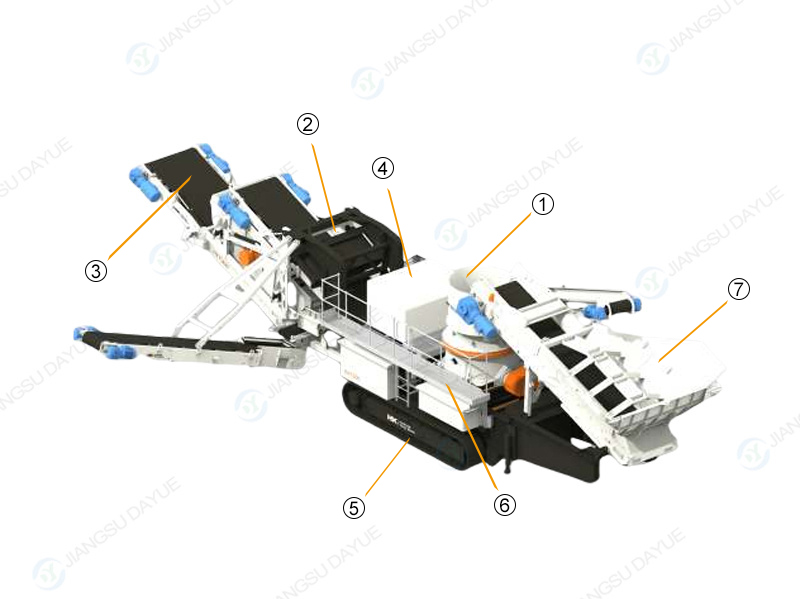

Structural Drawing
| ①Single cylinder hydraulic cone crusher | ②Iron remover | ③Main belt conveyor | |
| Hydraulically adjust the discharge port, automatically clear the cavity, and install an overload protection system. model: HXY300 power:220kw |
Suspended iron remover (Height adjustable) |
Extra wide main belt, Rubber side panels on both sides |
|
| ④Power unit | ⑤ Tracks | ⑥ladderson &Walkroad | ⑦ Receiving hopper |
| Heavy duty structure, Applicable to various environments. |
Easy to maintain equipment | The two wings of the hopper are foldable. Assemble the locking device, Easy to transport. |
|
Technical Parameters
| Model | HXY300 | HXY200 |
| Scope of application (Secondary crushing, tertiary crushing) |
1, widely used in medium and fine crushing of processed materials; 2, Crushing of various types of mining rocks; 3, aggregate crushing in asphalt and concrete mixing plants; 4, material crushing in other industries. |
1, widely used in medium and fine crushing of processed materials; 2, Crushing of various types of mining rocks; 3, aggregate crushing in asphalt and concrete mixing plants; 4, material crushing in other industries. |
|
Processing capacity (Bulk density1.6t/m³) |
110-330t/hThe actual output depends on the raw material composition, Feed size, pre-screening |
70-200t/h Actual output depends on raw material composition, feed size, pre-screening |
| Hopper capacity | 5m³(8m³) | 5m³(8m³) |
| Broken host | Medium crushing, fine crushing | Medium crushing, fine crushing |
| Maximum feed size | 157mm(Medium crushing) | 100mm(Medium crushing) |
|
Discharge opening adjustment range |
13~44mm(Medium crushing) | 13~38mm(Medium crushing) |
| External power supply | 293KW(Without engine power) | 205KW(Without engine power) |
| engine | 130KW | 130KW |
| weight | 56000kg | 42000kg |
| Shipping sizewxya | 18.5m×3.4m×4m | 18.5m×3.4m×4m |
| price | 220Ten thousand | 190Ten thousand |
| Options | Suspended iron remover | Suspended iron remover |
Contact US
Product Information
Quantity
Unit
Piece
Support order samples, customization, wholesale direct, and complete payment. If the product you look for does not have corresponding customized content, pls fill out the form below to contact us, and we will reply ASAP.
