Jiangsu Dayue Technology Co.,Ltd.

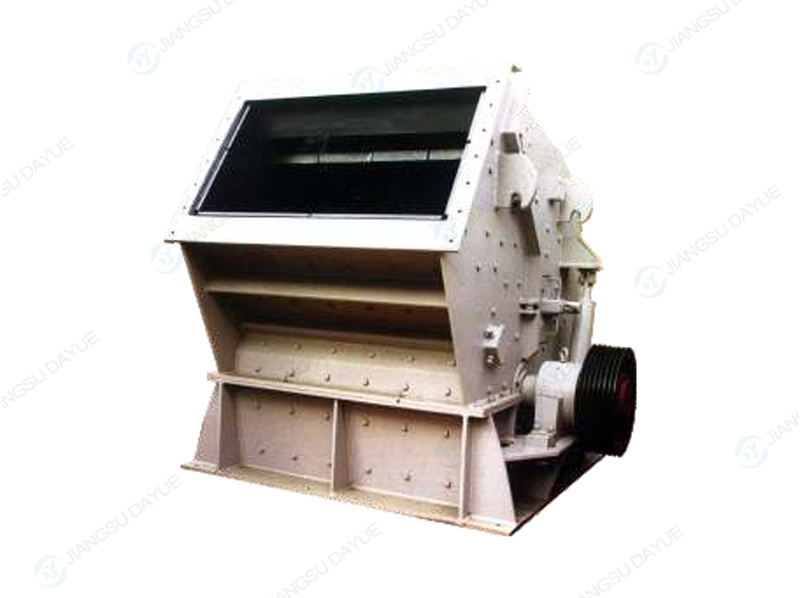

The series of products featuring large processing amountand fine removal matter can crush ores,rocks withcompression strength below 350 Mpa.The crushed stuff iscube-shaped without crack,containing low amount of needle-like stone so that it is the first choice as the raw materialregarding manufacturing industries such as the high gradehighway,water conservancy,airport and architecture.
 |
1.BearCase 2.Impact Plate 3.Impact Rack 4.Liner Plate 5.Feed Opening 6.Frame 7.Blow Bar 8.RotorSupport |
| Model | Spec (mm) | Size of opening (mmxmm) |
Max.feed edge (mmxmm) |
Capacity (t/h) |
Power (kw) |
Weight (Excluding Electric Motor) (t) |
| PF-1007 | φ1000x700 | 400x730 | 300 | 25-45 | 37-55 | 9.5 |
| PF-1010 | φ1000x1050 | 400x1080 | 350 | 50-80 | 55-75 | 12.2 |
| PF-1210 | φ1250x1050 | 400x1080 | 350 | 80-120 | 110-132 | 14.1 |
| PF-1214 | φ1250x1400 | 400x1430 | 350 | 100-160 | 132-160 | 16.8 |
| PF-1315 | φ1320x1500 | 860x1520 | 350 | 150-220 | 200-250 | 21 |
| PF-1415 | φ1450x1500 | 900x1650 | 350 | 200-260 | 250-280 | 24 |
| PF-1515 | φ1550x1500 | 900x1650 | 350 | 200-350 | 280-315 | 27 |
| PF-1520 | φ1500x2000 | 695x2030 | 350 | 250-400 | 355-400 | 36 |
