This crusher is widely adopted innumerousindustriessuchas mining,smelting,construction,roadconstruction&irigation works and chemical industry,etc It can crushmaterials with acompressive strength no morethan320MpaIt isthe first-choice equipment for crushing materials of a size of 5-15mm into material ofa size which is<5mm inmining industry.Its applicationin machine-made sand industry canleadtoanevenbetter result.
|

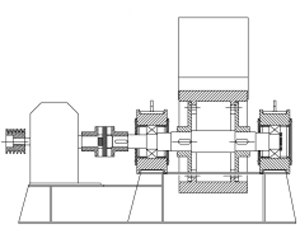

Front Structure Diagram
|
Reverse Structure Diagram
|
| Model | Roller diameter (mm) |
Roller length (mm) |
Maximum feed size (mm) |
Discharge size (mm) |
Production Capacity t/h |
Roller speed (r/min) |
Electric Motor | Dimensions (LXWXH) (mm) |
weight (kg) |
|
| Model | power (kw) |
|||||||||
| HX500x750 | 750 | 500 | 5-15 | <5 | 20-30 tons/hour | 60 | Y250M-6 | 37 | 2340X2030X1550 | 6950 |
| HX600x900 | 900 | 600 | 5-20 | <5 | 30-45 tons/hour | 60 | Y250M-4 | 55 | 2800X2355X1650 | 9150 |
| HX900x1200 | 1200 | 900 | 5-30 | <5 | 45-60 tons/hour | 60 | Y280M-4 | 90 | 3100X2840X2000 | 16000 |
